ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike with Panasonic cell

ebike lithium battery 60v 20ah lithium ion font b bicycle b font 60v 2000w electric scooter
Click to see details
ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric
100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $555.00 / piece
Sale price:  US $388.50 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

HTB1rx9bHFXXXXaWXVXXq6xXFXXXX - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1UY5MPFXXXXczXpXXq6xXFXXXb - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

Battery Model

6020

Voltage

60V

Capacity:

20AH

Type:

3.7v 3C 18650 cell

Source Resistance

40

Charge

Way of charge

CC/CV

Standard charge Current

2A

Max charge current

5A

Charge Cut-off Voltage

67.2V

CellOvercharge protection Voltage

42.V/CELL

Discharge

Continouns Discharge Current

40Amp( Can be customized)

Peak Discharge Current

150Amp(can be customized)

Cell Overdischarge Voltage

2.8v/cell

Discharge Cut-off Voltage

44.8v

Cycle Life

1000 times

Safety test

No firs ,No explosion

Overcharge Safety Test

Crush Safety test

Needling safety test

130 C high Temperature safety test

Weight6.0

6.5kg

Size

80*150*360mm

Fit moto power

Less 2400w

Working Temperature

0—45

-20—65

Retention of charge

>95%

Certificate

CE,UL,ROSH,UN38.3,MSDS

Application

E-bike,E-motorcycle,E-scooter

Warranty

One year

HTB1d0mWPFXXXXcfXXXXq6xXFXXXk - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

Charger Parameters

Applying Battery Type: Lithium

Input Voltage (AC/V): 100 to 240V

Output Current (A): 2 A

Output Voltage (DC/V): 67.2V

Charging Mode: CC/CV

Type of DC Output Connector: PLUG

Applications: E-Bike, Electric Bike, E-Scooter, Electric Scooter !

(Suitable Wattage of Motor: from 250 Watt to 2400 Watt suggested.)

HTB1NeaoPFXXXXX8aXXXq6xXFXXXf - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.

Does not use or leave the battery near a heat source as fire or heater

Use the battery charger specifically for that purpose when recharging.

Do not reverse the position and negative terminals.

Do not connect the battery electrodes to an electrical outlet.

Do not discard the battery in fire or a heater.

Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

Do not strike, trample or throw the battery.

Do not directly solder the battery and pierce the battery with a nail or other sharp objects

HTB1Y.5YPFXXXXaPXXXXq6xXFXXXM - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

1. Cells – A grade cells to make sure batteries in high and full capacity

2. Protection – Dual IC chips, that can anti-short circuit, anti-over charger, anti-over current, anti-overload

3. Compose Type : Injection Technology to make battery more stable.

4. Certifications : CE,UL,FCC, RoHS, ISO9001

5. Long life cycle, No memory, environment friendly.

HTB1k75VPFXXXXa9XXXXq6xXFXXXN - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor. Besides the basic functions such as over charge/ discharge,over current, short circuit, over temperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makes the system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily;

HTB16DaCPFXXXXbAXFXXq6xXFXXXa - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

1.High energy density

2.High working voltage for single battery cells

3.Pollution-free, environment friendly

4.Long cycle life; It extends its cycle life up to 800 cycles

5.Capacity, resistance, Voltage, platform time consistency is good

6.Simplifying battery management system (BMS) and a battery charger

7.With short-circuit production function, safe and reliable

8.Factory price & High quality

9.Fast charging

10. Light weight, small size

11. Large overcharge tolerance and safe performance

12. Self balance

HTB1k75VPFXXXXa9XXXXq6xXFXXXN - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor. Besides the basic functions such as over charge/ discharge,over current, short circuit, over temperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makes the system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily;

HTB1PfOLPFXXXXaJXFXXq6xXFXXXl - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

1. OEM orders are available

2. Superior quality and cost-performance ratio

3. Tags, plugs and connectors are available

4. We could design and produce the battery pack with aluminum alloy shell and assembly procession for customized configurations is available (we could design and develop Li-ion battery according to your product work performance & structure appearance)

5. Bulk pack is available

Lithium ion batteries are common in consumer electronics. They are one of the most popular types of battery for portable electronics, with one of the best energy-to-weight ratios, no memory effect, and a slow loss of charge when not in use. In addition to uses for consumer electronics, lithium-ion batteries are growing in popularity for defense, automotive, and aerospace applications due to their high energy density. Li-ion batteries are lighter than other equivalent secondary batteries—often much lighter. The energy is stored in these batteries through the movement of lithium ions.

A key advantage of using Li-ion chemistry is the high open circuit voltage that can be obtained in comparison to aqueous batteries (such as lead acid, nickel metal hydride and nickel cadmium).

  • Long battery life: 1000 plus recharges
  • Ultra light and small size
  • Super high discharge rate means more power.
  • Super long range
  • It never explodes! Peace of mind for you!
  • No Memory Effects
  • Maintenance Free: only need to charge it once every month if you are not using it

HTB1QuKFPFXXXXcnXFXXq6xXFXXX5 - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

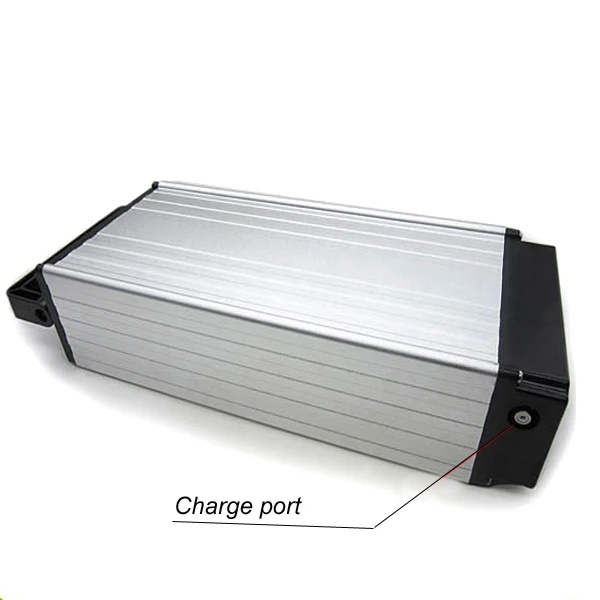

60V 20AH 2000w Lithium Battery with ,BMS and Charger:

Parts included:

1. Lithium Battery with slim Aluminium case

2. Built-in BMS board

3. Charger (67.2V 2.0A 50/60HZ 100-240V EU ,UK,US,AU PLUG)

Note : 1: If choose 2a charger ,we will send 2a charger and battery 2: If choose 5a charger ,we will send 5a charger and battery 3: If choose 2a charger and holder ,we will send 2a charger ,holder and battery 4: If choose 5a charger and holder ,we will send 5a charger ,holder and battery

HTB1kYGMPFXXXXc1XpXXq6xXFXXXM - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1fxkDSpXXXXbqXXXXq6xXFXXXS - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1q0poSFXXXXXdapXXq6xXFXXXH - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1PiTSSFXXXXXRXpXXq6xXFXXXb - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1WdqgXgnH8KJjSspcq6z3QFXaI - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cellHTB1RqD2SFXXXXXfXpXXq6xXFXXXT - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cellHTB1kmlHXlLN8KJjSZPhq6A.spXag - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cellHTB1yn OSFXXXXcWXpXXq6xXFXXXu - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cellHTB1Hwv8SFXXXXa9XXXXq6xXFXXX0 - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cellHTB1rROeXhrI8KJjy0Fpq6z5hVXaB - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1l3qkXgLD8KJjSszeq6yGRpXax - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1JBnNSFXXXXXLXFXXq6xXFXXXe - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

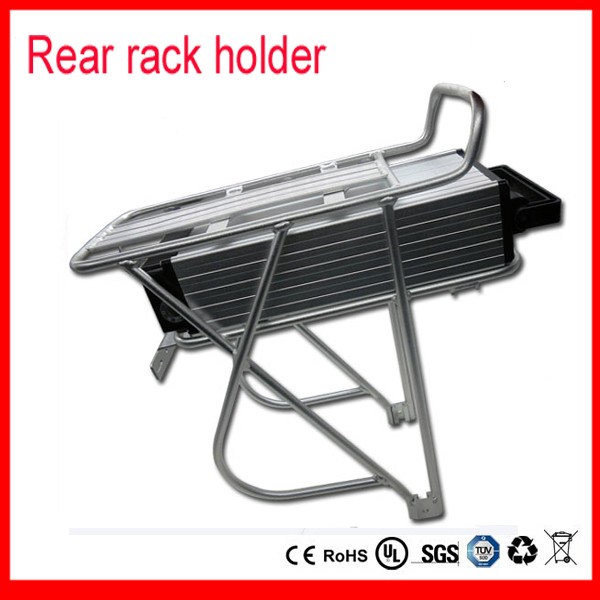

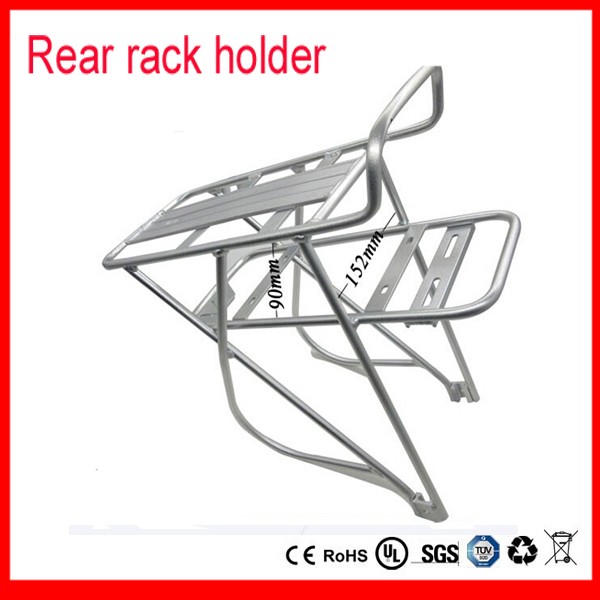

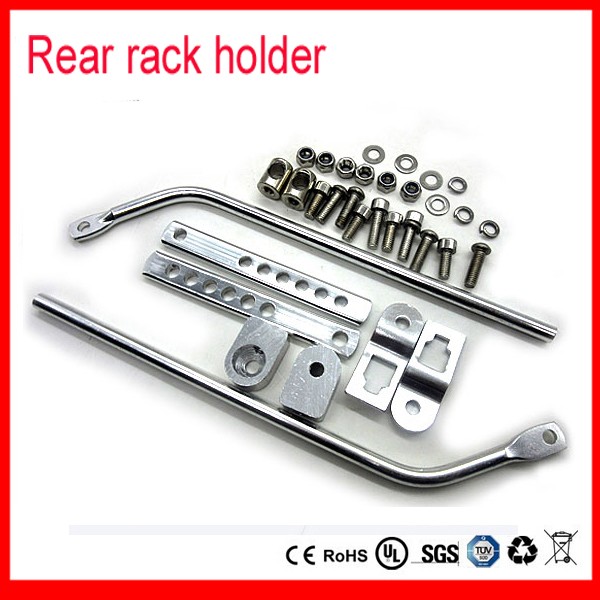

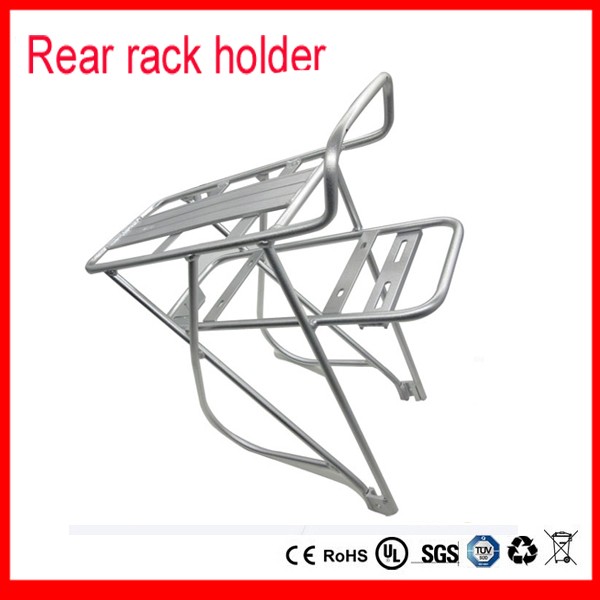

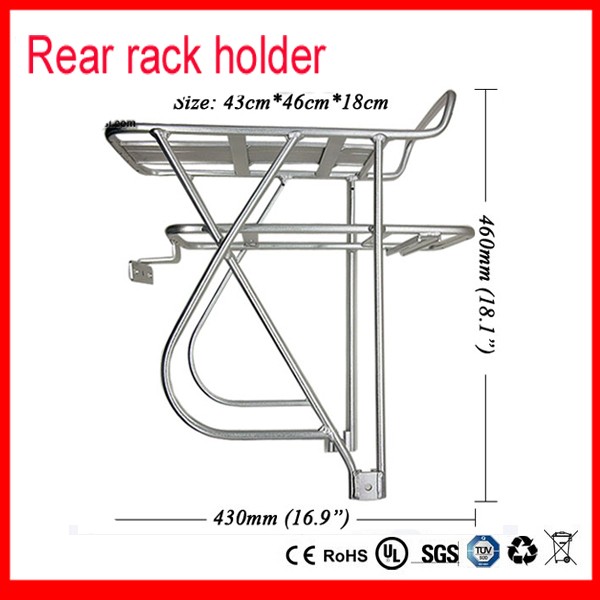

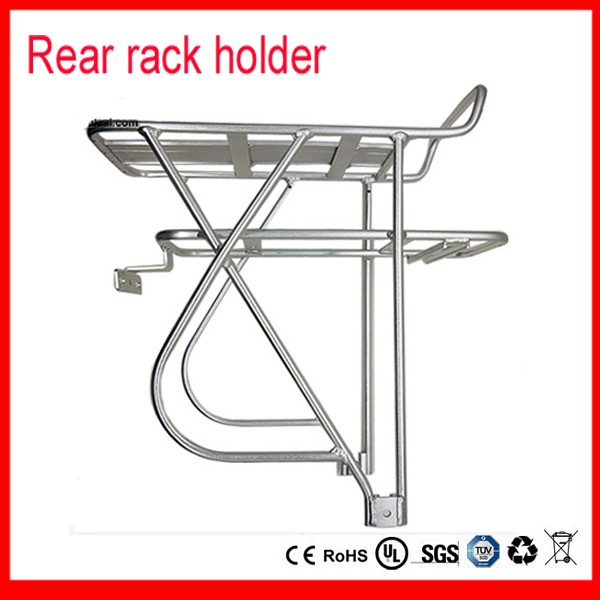

This is rear rack holder ,please see pictures

HTB1vr8AOVXXXXbwXFXXq6xXFXXXp - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1W84sOVXXXXXPXVXXq6xXFXXX8 - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cellHTB1NZ4NOVXXXXc7XXXXq6xXFXXXS - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cellHTB1s64MOVXXXXceXXXXq6xXFXXXt - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cellHTB1zAddOVXXXXXkapXXq6xXFXXXq - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cellHTB1OFNhOVXXXXbwaXXXq6xXFXXXC - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cellHTB1OvdoOVXXXXcRXVXXq6xXFXXXf - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB19oKhPFXXXXc2aXXXq6xXFXXXp - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

1. Light electric vehicles: such as electric bicycle, golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs

2. Large-scale electric vehicles: such as bus, electric car, tourist car and commix car

3. Electric tool: electric drill, electric saw, lawn mower

4. Remote control cars, boat, aircraft, toys,

5. Solar and wind power generation energy storage devices

6. UPS emergency lights, warning lights and miners lamp

8. Small medical equipment and portable equipment

HTB1FmeLPFXXXXcCXpXXq6xXFXXXH - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1s6uIPFXXXXX9XFXXq6xXFXXXJ - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB121OxPFXXXXXgXVXXq6xXFXXXb - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB15a5GPFXXXXbmXFXXq6xXFXXXO - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB17JKNPFXXXXb7XpXXq6xXFXXXZ - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1upOdPFXXXXboapXXq6xXFXXXP - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1yVCTPFXXXXXWXpXXq6xXFXXXv - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1pSm1PFXXXXX7XXXXq6xXFXXXw - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1azd8PFXXXXXsaFXXq6xXFXXXr - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

HTB1Tq5NPFXXXXb2XpXXq6xXFXXXA - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cellHTB1fhqxPFXXXXajXVXXq6xXFXXXM - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cellHTB16tCePFXXXXbbapXXq6xXFXXXp - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

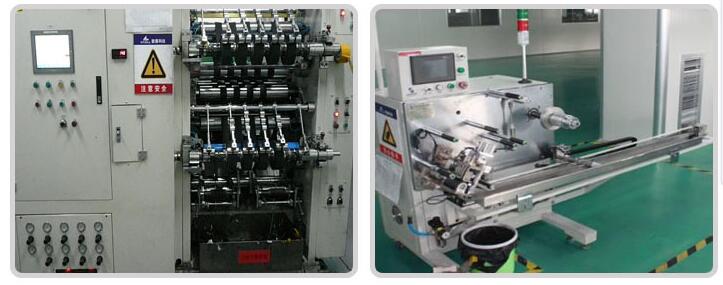

experience

We have more than 10years experience in producing Nicd&NiMH battery cell and pack,7years of experience

to manufacture Lithum ion battery,the factory passed ISO 9001:2008 certification.

Strict process management and control

Each process for making battery wereunder strict management and control,all of the battery wereunder full

inspection before delivery.

After-sales service

Support prompt shipment and sample quality products,track the cargo in time after delivery.More than one year

Guarantee,there are safety and operating instructions for your reference.

HTB1vriiPFXXXXcvaXXXq6xXFXXXj - ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

Quick response to clients’ enquiries within 12hrs

•Tailor-made solution provided by our experienced team and professional engineers for lithium

polymer battery

•More than 10 years experience in producing battery products for various application.

•Value quality and long-term cooperation to reach win-win relationship.
