ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike  with Panasonic cell

ebike lithium battery 60v 20ah lithium ion bicycle 60v 2000w electric scooter battery for kit electric bike with Panasonic cell

80 % of buyers enjoyed this product! 0 orders
TODAY'S DEAL Ends in: 04:36:18
List price:
US $555.00
Price:
US $360.75

Product Description

Battery Model

6020

Voltage

60V

Capacity:

20AH

Type:

3.7v 3C 18650 cell

Source Resistance

40

Charge

Way of charge

CC/CV

Standard charge Current

2A

Max charge current

5A

Charge Cut-off Voltage

67.2V

CellOvercharge protection Voltage

42.V/CELL

Discharge

Continouns Discharge Current

40Amp( Can be customized)

Peak Discharge Current

150Amp(can be customized)

Cell Overdischarge Voltage

2.8v/cell

Discharge Cut-off Voltage

44.8v

Cycle Life

1000 times

Safety test

No firs ,No explosion

Overcharge Safety Test

Crush Safety test

Needling safety test

130 C high Temperature safety test

Weight6.0

6.5kg

Size

80*150*360mm

Fit moto power

Less 2400w

Working Temperature

0—45

-20—65

Retention of charge

>95%

Certificate

CE,UL,ROSH,UN38.3,MSDS

Application

E-bike,E-motorcycle,E-scooter

Warranty

One year

Charger Parameters

Applying Battery Type: Lithium

Input Voltage (AC/V): 100 to 240V

Output Current (A): 2 A

Output Voltage (DC/V): 67.2V

Charging Mode: CC/CV

Type of DC Output Connector: PLUG

Applications: E-Bike, Electric Bike, E-Scooter, Electric Scooter !

(Suitable Wattage of Motor: from 250 Watt to 2400 Watt suggested.)

Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.

Does not use or leave the battery near a heat source as fire or heater

Use the battery charger specifically for that purpose when recharging.

Do not reverse the position and negative terminals.

Do not connect the battery electrodes to an electrical outlet.

Do not discard the battery in fire or a heater.

Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

Do not strike, trample or throw the battery.

Do not directly solder the battery and pierce the battery with a nail or other sharp objects

1. Cells – A grade cells to make sure batteries in high and full capacity

2. Protection – Dual IC chips, that can anti-short circuit, anti-over charger, anti-over current, anti-overload

3. Compose Type : Injection Technology to make battery more stable.

4. Certifications : CE,UL,FCC, RoHS, ISO9001

5. Long life cycle, No memory, environment friendly.

Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor. Besides the basic functions such as over charge/ discharge,over current, short circuit, over temperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makes the system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily;

1.High energy density

2.High working voltage for single battery cells

3.Pollution-free, environment friendly

4.Long cycle life; It extends its cycle life up to 800 cycles

5.Capacity, resistance, Voltage, platform time consistency is good

6.Simplifying battery management system (BMS) and a battery charger

7.With short-circuit production function, safe and reliable

8.Factory price & High quality

9.Fast charging

10. Light weight, small size

11. Large overcharge tolerance and safe performance

12. Self balance

Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor. Besides the basic functions such as over charge/ discharge,over current, short circuit, over temperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makes the system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily;

1. OEM orders are available

2. Superior quality and cost-performance ratio

3. Tags, plugs and connectors are available

4. We could design and produce the battery pack with aluminum alloy shell and assembly procession for customized configurations is available (we could design and develop Li-ion battery according to your product work performance & structure appearance)

5. Bulk pack is available

Lithium ion batteries are common in consumer electronics. They are one of the most popular types of battery for portable electronics, with one of the best energy-to-weight ratios, no memory effect, and a slow loss of charge when not in use. In addition to uses for consumer electronics, lithium-ion batteries are growing in popularity for defense, automotive, and aerospace applications due to their high energy density. Li-ion batteries are lighter than other equivalent secondary batteries—often much lighter. The energy is stored in these batteries through the movement of lithium ions.

A key advantage of using Li-ion chemistry is the high open circuit voltage that can be obtained in comparison to aqueous batteries (such as lead acid, nickel metal hydride and nickel cadmium).

  • Long battery life: 1000 plus recharges
  • Ultra light and small size
  • Super high discharge rate means more power.
  • Super long range
  • It never explodes! Peace of mind for you!
  • No Memory Effects
  • Maintenance Free: only need to charge it once every month if you are not using it

60V 20AH 2000w Lithium Battery with ,BMS and Charger:

Parts included:

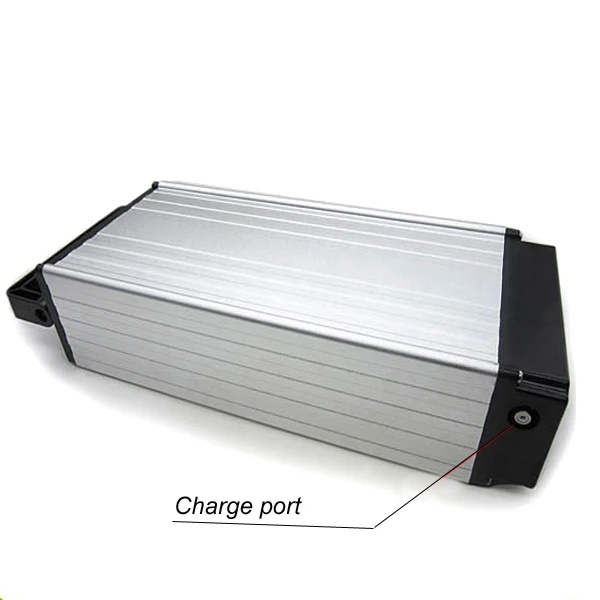

1. Lithium Battery with slim Aluminium case

2. Built-in BMS board

3. Charger (67.2V 2.0A 50/60HZ 100-240V EU ,UK,US,AU PLUG)

Note : 1: If choose 2a charger ,we will send 2a charger and battery 2: If choose 5a charger ,we will send 5a charger and battery 3: If choose 2a charger and holder ,we will send 2a charger ,holder and battery 4: If choose 5a charger and holder ,we will send 5a charger ,holder and battery

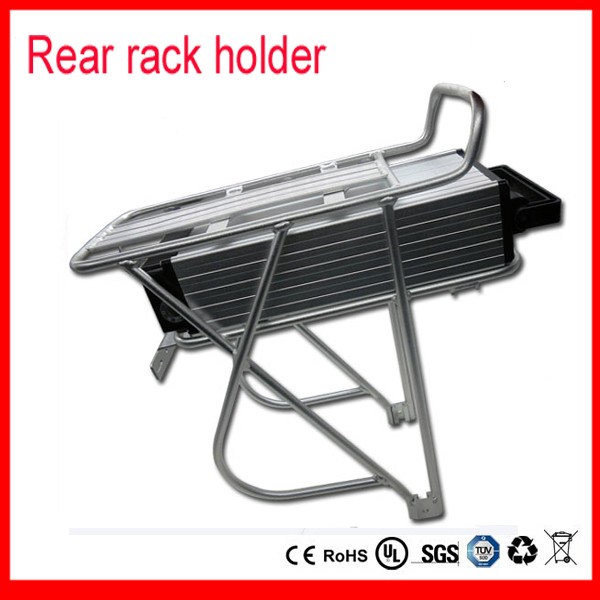

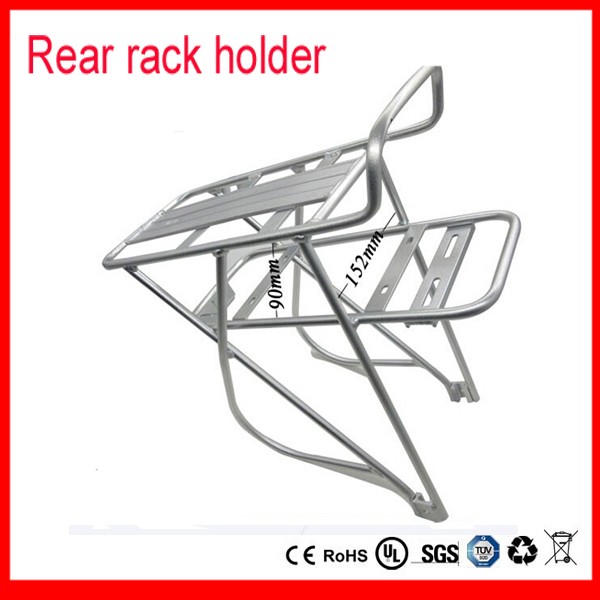

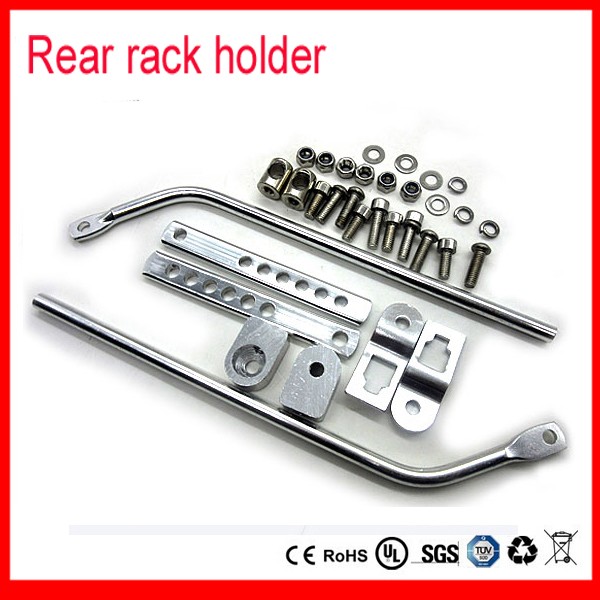

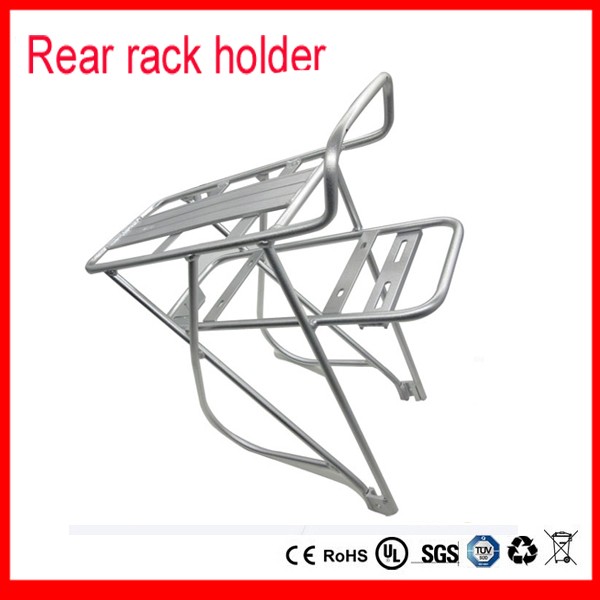

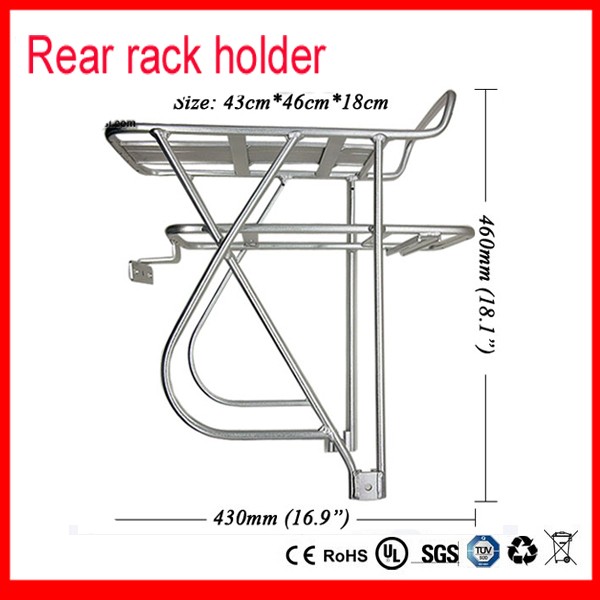

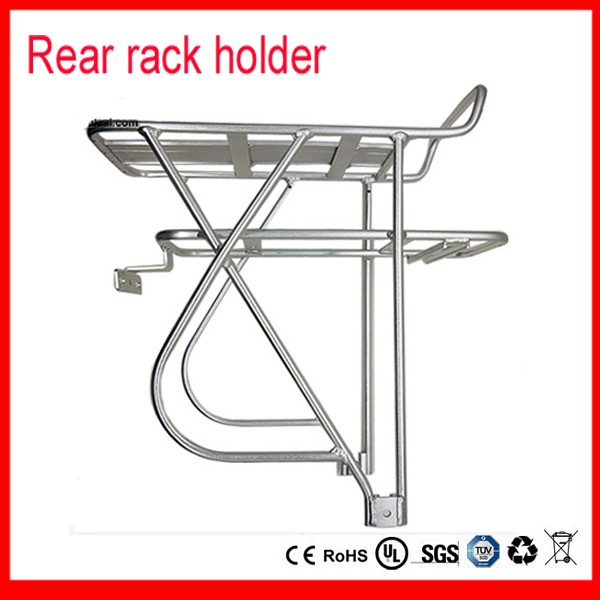

This is rear rack holder ,please see pictures

1. Light electric vehicles: such as electric bicycle, golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs

2. Large-scale electric vehicles: such as bus, electric car, tourist car and commix car

3. Electric tool: electric drill, electric saw, lawn mower

4. Remote control cars, boat, aircraft, toys,

5. Solar and wind power generation energy storage devices

6. UPS emergency lights, warning lights and miners lamp

8. Small medical equipment and portable equipment

experience

We have more than 10years experience in producing Nicd&NiMH battery cell and pack,7years of experience

to manufacture Lithum ion battery,the factory passed ISO 9001:2008 certification.

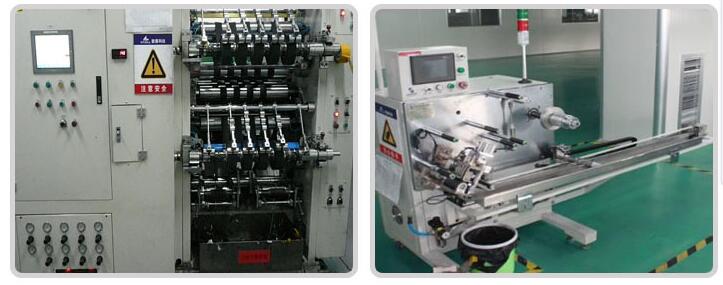

Strict process management and control

Each process for making battery wereunder strict management and control,all of the battery wereunder full

inspection before delivery.

After-sales service

Support prompt shipment and sample quality products,track the cargo in time after delivery.More than one year

Guarantee,there are safety and operating instructions for your reference.

Quick response to clients’ enquiries within 12hrs

•Tailor-made solution provided by our experienced team and professional engineers for lithium

polymer battery

•More than 10 years experience in producing battery products for various application.

•Value quality and long-term cooperation to reach win-win relationship.

Packaging Details

Unit Type:
 piece
Our store ships to more than 200 countries and you can enjoy free shipping on all items sold on bicycle-buyer.com
Estimated Delivery Time is 7-30 business.

Note: The delivery time mentioned above does not include order processing time that usually varies from 1 to 3 days.
Different items have their own processing time, which is what we cannot control. But what we can do is try the best to let you receive your items as soon as possible.

The following cases should be taken into consideration regarding shipping times:
  • Weight and dimensions of a package
  • Place of Dispatch
  • Destination
  • Freight
