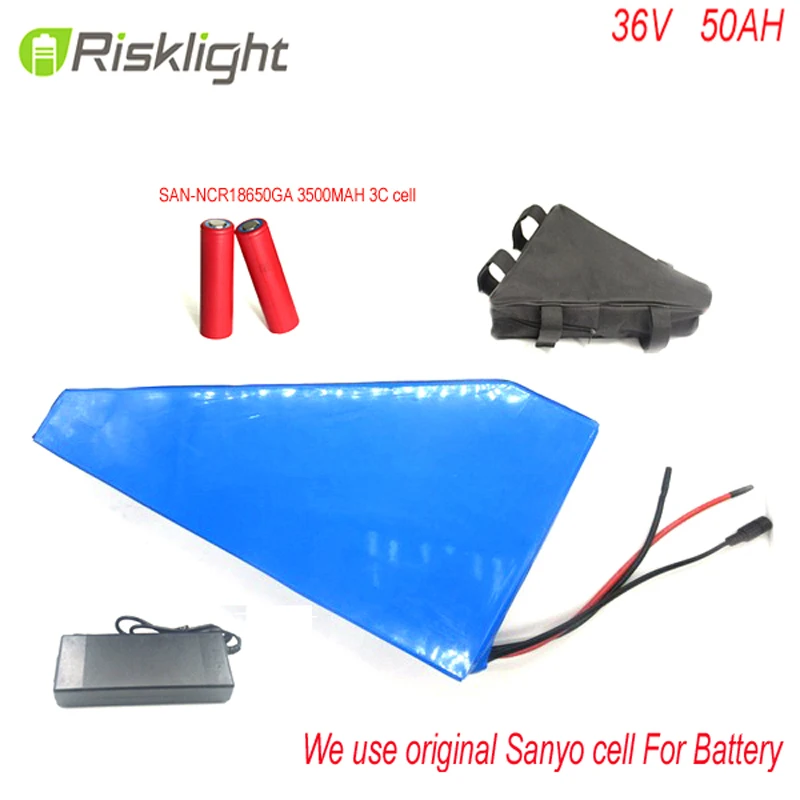

Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

Frame type 36V 50Ah triangle E bike battery 36 Volts Lithium ion battery for 1000W Electric
Click to see details
36V 50Ah triangle E bike battery 36 Volts Lithium ion battery batteria bici vae velo electrique
100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $525.00 / piece
Sale price:  US $341.25 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

HTB1rx9bHFXXXXaWXVXXq6xXFXXXX - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB1UY5MPFXXXXczXpXXq6xXFXXXb - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

Battery Model

3650

Voltage

36V

Capacity:

50AH

Type:

3.7v 3C 18650 cell

Source Resistance

40

Charge

Way of charge

CC/CV

Standard charge Current

2A

Max charge current

5A

Charge Cut-off Voltage

42.0V

CellOvercharge protection Voltage

4.2V/CELL

Discharge

Continouns Discharge Current

30Amp

Peak Discharge Current

100Amp

Cell Overdischarge Voltage

2.8v/cell

Discharge Cut-off Voltage

28.0V

Cycle Life

1000 times

Safety test

No firs ,No explosion

Overcharge Safety Test

Crush Safety test

Needling safety test

130 C high Temperature safety test

Weight

7.0kg

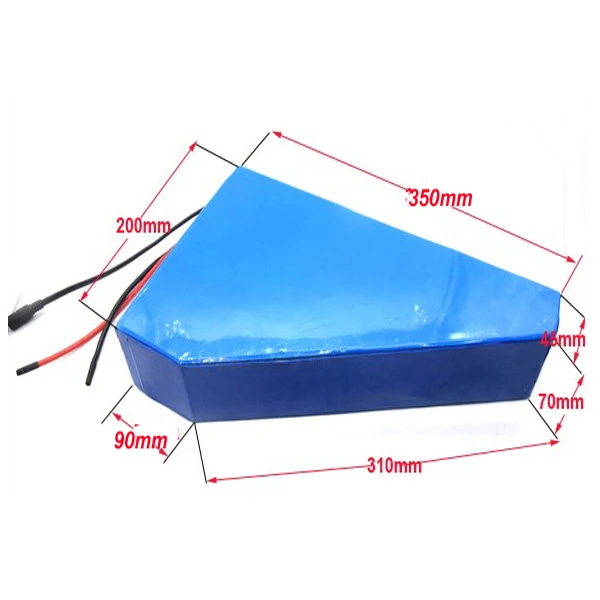

Size

50*70*90*200*310*350MM

Fit moto power

Less 1080w

Working Temperature

0C—45C

-20-C—65C

Retention of charge

>95%

Certificate

CE,UL,ROSH,UN38.3,MSDS

Application

E-bike,E-motorcycle,E-scooter

Warranty

One year

Lifecycle of the whole pack:>85% capacity after 800 cycles. Lifecycle of single cell: >85% capacity after 1200 cycles, >70% capacity after 2000 cycles. (<1C discharge rate and <1C charge rate)

HTB1d0mWPFXXXXcfXXXXq6xXFXXXk - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

Charger Parameters

Applying Battery Type: Lithium

Input Voltage (AC/V): 100 to 240V

Output Current (A): 2 A

Output Voltage (DC/V): 42.0V

Charging Mode: CC/CV

Type of DC Output Connector: PLUG

Applications: E-Bike, Electric Bike, E-Scooter, Electric Scooter !

(Suitable Wattage of Motor: from 250 Watt to 1080 Watt suggested.)

HTB1NeaoPFXXXXX8aXXXq6xXFXXXf - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.

Does not use or leave the battery near a heat source as fire or heater

Use the battery charger specifically for that purpose when recharging.

Do not reverse the position and negative terminals.

Do not connect the battery electrodes to an electrical outlet.

Do not discard the battery in fire or a heater.

Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

Do not strike, trample or throw the battery.

Do not directly solder the battery and pierce the battery with a nail or other sharp objects

HTB1Y.5YPFXXXXaPXXXXq6xXFXXXM - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

1. Cells – A grade cells to make sure batteries in high and full capacity

2. Protection – Dual IC chips, that can anti-short circuit, anti-over charger, anti-over current, anti-overload

3. Compose Type : Injection Technology to make battery more stable.

4. Certifications : CE,UL,FCC, RoHS, ISO9001

5. Long life cycle, No memory, environment friendly.

HTB1k75VPFXXXXa9XXXXq6xXFXXXN - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor. Besides the basic functions such as over charge/ discharge,over current, short circuit, over temperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makes the system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily;

HTB16DaCPFXXXXbAXFXXq6xXFXXXa - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

1.High energy density

2.High working voltage for single battery cells

3.Pollution-free, environment friendly

4.Long cycle life; It extends its cycle life up to 800 cycles

5.Capacity, resistance, Voltage, platform time consistency is good

6.Simplifying battery management system (BMS) and a battery charger

7.With short-circuit production function, safe and reliable

8.Factory price & High quality

9.Fast charging

10. Light weight, small size

11. Large overcharge tolerance and safe performance

12. Self balance

HTB1PfOLPFXXXXaJXFXXq6xXFXXXl - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

1. OEM orders are available

2. Superior quality and cost-performance ratio

3. Tags, plugs and connectors are available

4. We could design and produce the battery pack with aluminum alloy shell and assembly procession for customized configurations is available (we could design and develop Li-ion battery according to your product work performance & structure appearance)

5. Bulk pack is available

Lithium ion batteries are common in consumer electronics. They are one of the most popular types of battery for portable electronics, with one of the best energy-to-weight ratios, no memory effect, and a slow loss of charge when not in use. In addition to uses for consumer electronics, lithium-ion batteries are growing in popularity for defense, automotive, and aerospace applications due to their high energy density. Li-ion batteries are lighter than other equivalent secondary batteries—often much lighter. The energy is stored in these batteries through the movement of lithium ions.

A key advantage of using Li-ion chemistry is the high open circuit voltage that can be obtained in comparison to aqueous batteries (such as lead acid, nickel metal hydride and nickel cadmium).

  • Long battery life: 1000 plus recharges
  • Ultra light and small size
  • Super high discharge rate means more power.
  • Super long range
  • It never explodes! Peace of mind for you!
  • No Memory Effects
  • Maintenance Free: only need to charge it once every month if you are not using it

HTB1QuKFPFXXXXcnXFXXq6xXFXXX5 - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

36V 50AH 1000w Lithium Battery with PVC Case,BMS and Charger:

Parts included:

1. Lithium Battery with pvc case

2. Built-in BMS board

3. Charger (42.0V 2.0A 100-240V 50/60HZ US,EU,UK,AU PLUG)

4.Free battery bag

HTB1kYGMPFXXXXc1XpXXq6xXFXXXM - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

You can choose battery discharge port : A ,B,C,D

HTB1fxkDSpXXXXbqXXXXq6xXFXXXS - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB1EElhSFXXXXbTaXXXq6xXFXXXj - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB1k5SkSFXXXXXPXpXXq6xXFXXXk - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB1Q3OlSFXXXXbKXpXXq6xXFXXX7 - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cellHTB1OsdVSFXXXXc9XVXXq6xXFXXXF - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cellHTB1Z.lQSFXXXXXyaXXXq6xXFXXXH - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cellHTB1rABSSFXXXXbfaXXXq6xXFXXXf - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cellHTB1hG5tSFXXXXcwXXXXq6xXFXXXn - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cellHTB1Rll7SFXXXXaZXFXXq6xXFXXXO - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cellHTB1Jjp4SFXXXXcXXFXXq6xXFXXXM - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB19oKhPFXXXXc2aXXXq6xXFXXXp - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

1. Light electric vehicles: such as electric bicycle, golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs

2. Large-scale electric vehicles: such as bus, electric car, tourist car and commix car

3. Electric tool: electric drill, electric saw, lawn mower

4. Remote control cars, boat, aircraft, toys,

5. Solar and wind power generation energy storage devices

6. UPS emergency lights, warning lights and miners lamp

8. Small medical equipment and portable equipment

HTB1FmeLPFXXXXcCXpXXq6xXFXXXH - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB1s6uIPFXXXXX9XFXXq6xXFXXXJ - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB121OxPFXXXXXgXVXXq6xXFXXXb - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB15a5GPFXXXXbmXFXXq6xXFXXXO - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB17JKNPFXXXXb7XpXXq6xXFXXXZ - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB1upOdPFXXXXboapXXq6xXFXXXP - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB1yVCTPFXXXXXWXpXXq6xXFXXXv - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB1pSm1PFXXXXX7XXXXq6xXFXXXw - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB1azd8PFXXXXXsaFXXq6xXFXXXr - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

HTB1Tq5NPFXXXXb2XpXXq6xXFXXXA - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cellHTB1fhqxPFXXXXajXVXXq6xXFXXXM - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cellHTB16tCePFXXXXbbapXXq6xXFXXXp - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

experience

We have more than 10years experience in producing Nicd&NiMH battery cell and pack,7years of experience

to manufacture Lithum ion battery,the factory passed ISO 9001:2008 certification.

Strict process management and control

Each process for making battery wereunder strict management and control,all of the battery wereunder full

inspection before delivery.

After-sales service

Support prompt shipment and sample quality products,track the cargo in time after delivery.More than one year

Guarantee,there are safety and operating instructions for your reference.

HTB1vriiPFXXXXcvaXXXq6xXFXXXj - Frame type 36V 50Ah triangle E-bike battery 36 Volts Lithium ion battery for 1000W Electric Bicycle For Sanyo cell

Quick response to clients’ enquiries within 12hrs

•Tailor-made solution provided by our experienced team and professional engineers for lithium

polymer battery

•More than 10 years experience in producing battery products for various application.

•Value quality and long-term cooperation to reach win-win relationship.
